Allied Machinery

• Automatic
• Other, Semi-automatic/Automatic models available

• Capacity
• Up to 30 mm diameter (customizable)

• Color
• Blue-Grey or as per order

• Computerized
• No

• Control System
• Other, Electrical/PLC-based

• Diameter
• Up to 30 mm

• Dimension (L*W*H)
• Approx. 3000 mm x 900 mm x 1200 mm

• Drawing
• Other, Available on request

• Feature
• Other, Heavy-duty structure, Easy to operate, Low maintenance

• General Use
• Bar, Pipe, Tube, Wire Straightening

• Material
• Other, Mild Steel, Stainless Steel

• Phase
• 3 Phase

• Product Type

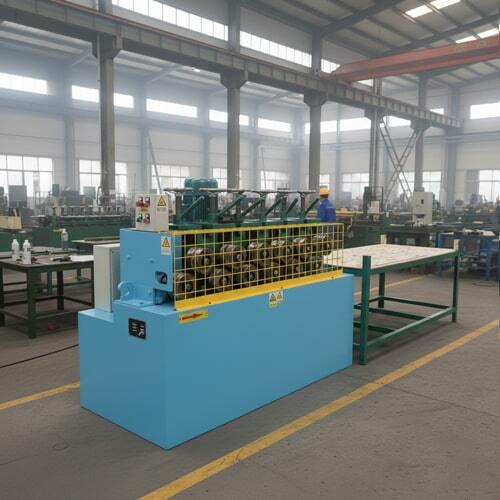

• Straightening Machine

• QC System
• Standard In-house Inspection

• Shape
• Rectangular body cabinet

• Surface Treatment
• Other, Powder Coated

• Tolerance
• 0.2 mm

• Torque
• High torque gearbox drive

• Touch Screen
• No

• Type
• Other, Hydraulic/Mechanical

• Voltage
• 380V/415V, 3Phase, 50Hz

• Weight (kg)
• Approx. 700 - 2500 kg (varies by model)

• Automatic
• Other, Semi-Automatic

• Capacity
• 2-10 Ton/Day (depending on model)

• Color
• Industrial Grey/Blue (customizable)

• Computerized
• No

• Control System
• Other, PLC-based or manual

• Diameter
• Edging rollers up to 400 mm

• Dimension (L*W*H)
• 2500 x 1500 x 1800 mm (may vary by model)

• Drawing
• Other, Available upon request

• Feature
• Other, High precision edges, sturdy construction, easy operation

• General Use
• Edge cutting and finishing of metal sheets, wood, or other materials

• Material
• Other, High-grade steel, cast iron

• Phase
• Three Phase

• Product Type

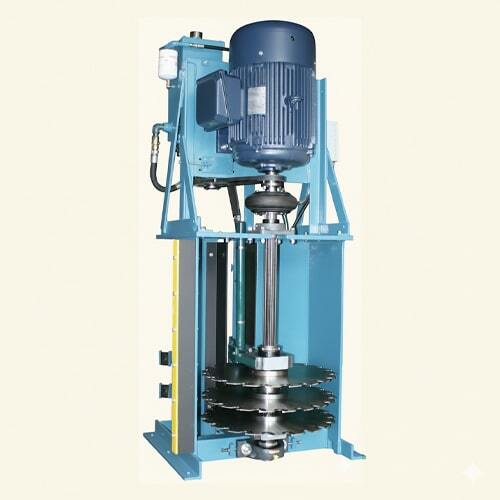

• Vertical Edger

• QC System
• In-house quality check

• Shape
• Rectangular base, vertical assembly

• Surface Treatment
• Other, Painted/Coated

• Tolerance
• 0.5 mm

• Torque
• 1600 Nm

• Touch Screen
• No

• Type
• Other, Vertical Edging Machine

• Voltage
• 380-440 V, 3 Phase, 50 Hz

• Weight (kg)
• 2000-3500 kg

• Automatic
• Yes

• Capacity
• Up to 20 Tons (customizable)

• Color
• Industrial Green (Standard)

• Computerized
• No

• Control System
• Other, PLC or Manual

• Diameter
• 400 mm (customizable)

• Dimension (L*W*H)
• 2350 mm x 850 mm x 1100 mm

• Drawing
• Other, Available on Request

• Feature
• Other, Heavy Duty, High Precision, Corrosion Resistant

• General Use
• Industrial Roller Handling

• Material
• Other, Alloy Steel / Cast Steel / Mild Steel

• Phase
• Three Phase

• Product Type
• Pinch Roll

• QC System
• ISO 9001:2015

• Shape
• Cylindrical

• Surface Treatment
• Other, Polished/Anti-corrosive Coating

• Tolerance
• 0.005 mm

• Torque
• 350-600 Nm

• Touch Screen
• No

• Type
• Other, Mechanical Rolling Pinch Roll

• Voltage
• 3-phase, 415V, 50Hz

• Weight (kg)
• 1200 kg (approx.)
